Retrofit Devices
16Amps Retro Switches

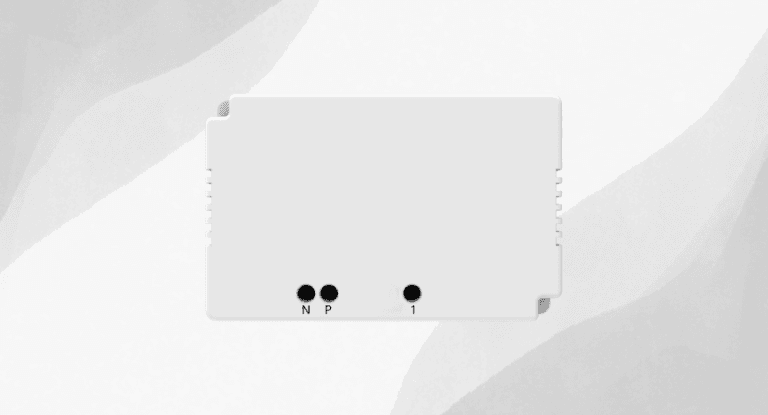

16Amps 1 Switch
Power input: 240V AC, 50/60Hz.
Max Current Output: Up to 16A
Maximum Supportive Load–7.5KW (32A).
Incandescent lamp/Resistive Load Per Channel: 1800W
LED Load: 200 W or 6 Nos (whichever is higher) on each channel.
Inductive Load: 800W
Typical standby power:<0.8W.
Surge Protection: 2.5KV(Tested Upto 4KV)
Dimensions- Height: 52mm Width: 16mm Length: 56mm

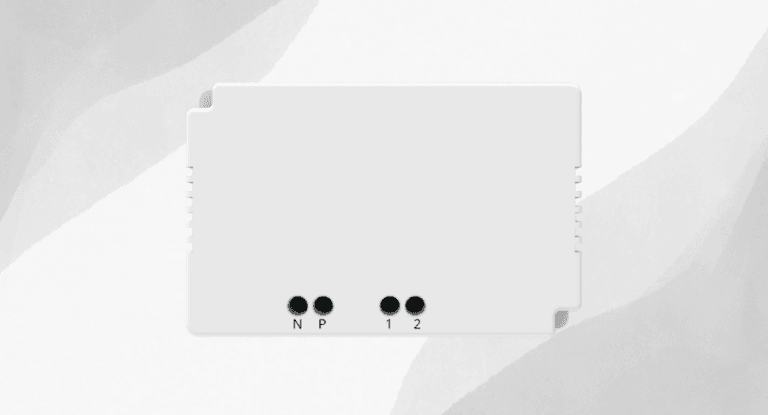

16Amps 2 Switch
Power input: 240V AC, 50/60Hz.
Max Current Output: Up to 16A
Maximum Supportive Load–7.5KW (32A).
Incandescent lamp/Resistive Load Per Channel: 1800W
LED Load: 200 W or 6 Nos (whichever is higher) on each channel.
Inductive Load: 800W
Typical standby power:<0.8W.
Surge Protection: 2.5KV(Tested Upto 4KV)
Dimensions- Height: 52mm Width: 16mm Length: 56mm

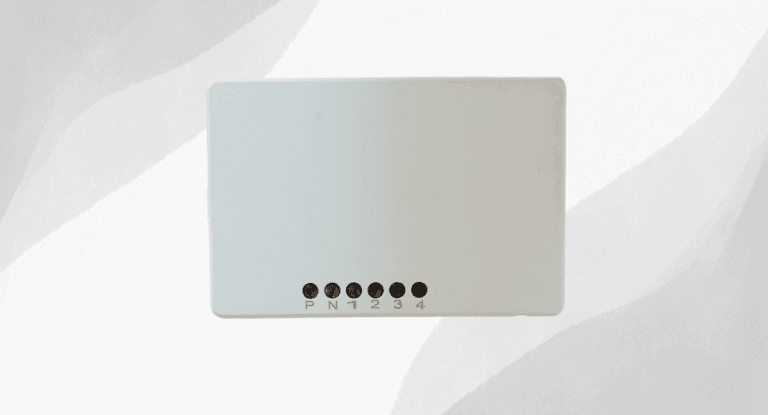

16Amps 4 Switch
Power input: 240V AC, 50/60Hz.
Max Current Output: Up to 16A
Maximum Supportive Load–7.5KW (32A).
Incandescent lamp/Resistive Load Per Channel: 1800W
LED Load: 200 W or 6 Nos (whichever is higher) on each channel.
Inductive Load: 800W
Typical standby power:<0.8W.
Surge Protection: 2.5KV(Tested Upto 4KV)
Dimensions- Height:52mm Width:16mm Length:80mm

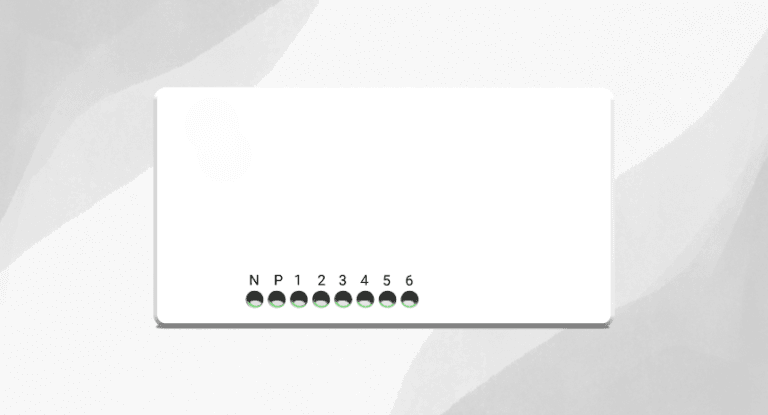

16Amps 6 Switch
Power input: 240V AC, 50/60Hz.
Max Current Output: Up to 16A
Maximum Supportive Load–7.5KW (32A).
Incandescent lamp/Resistive Load Per Channel: 1800W
LED Load: 200 W or 6 Nos (whichever is higher) on each channel.
Inductive Load: 800W
Typical standby power:<0.8W.
Surge Protection: 2.5KV(Tested Upto 4KV)
Dimensions- Height:52mm Width:16mm Length:103mm

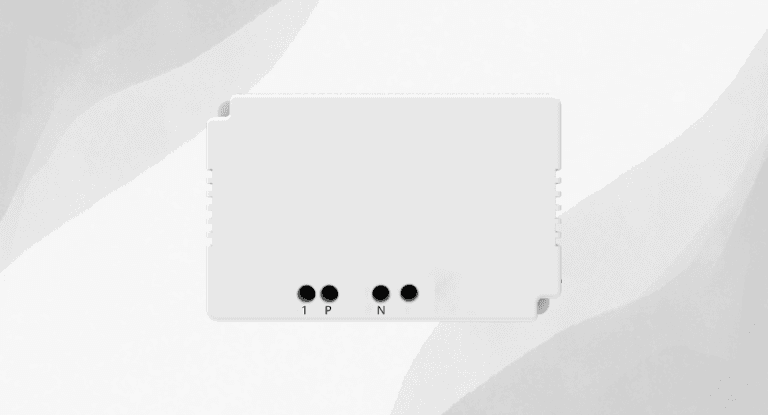

25Amps Switch
Input voltage: 240V AC, 50/60Hz.
Max Current Output: 25A
Maximum Resistive Load: 4000W
Maximum Inductive Load: 2000W
Max standby power: <0.8W.
Surge Protection: 2.5KV(Tested Upto 4KV)
Dimensions- Height:52mm Width:16mm Length:56mm

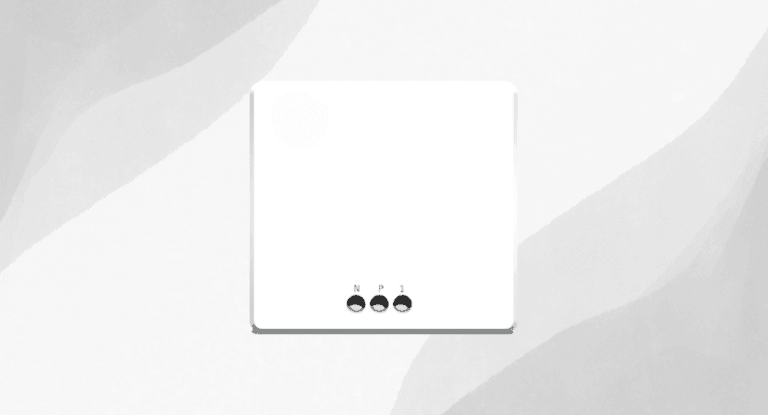

25Amps Switch +
Power Input: 240V AC, 50/60Hz.
Max Current Output: 25A
Maximum Resistive Load: 4000W
Maximum Inductive Load: 2000W
Max standby power:<0.8W.
1Energy Monitoring: Yes,
Dimensions- Height:40mm Width:25mm Length:77mm
10Amps Retrofit Device

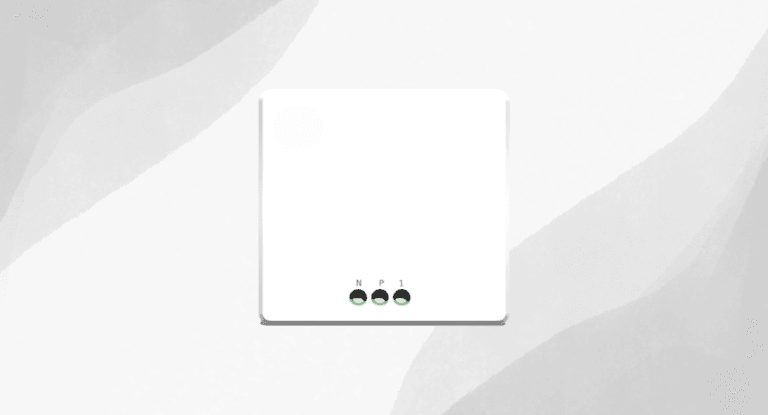

10Amps 1 Switch
Power input: 240V AC, 50/60Hz.
Maximum Supportive Load–7.5KW (32A).
Incandescent lamp/Resistive Load Per Channel:800W
LED Load: 120W or 6 Nos(whichever is higher) on each channel.
Inductive Load: 400W
Typical standby power: <0.8W
Surge Protection:2.5KV(Tested Upto 4KV)
Dimensions- Height:40mm Width:25mm Length:56mm

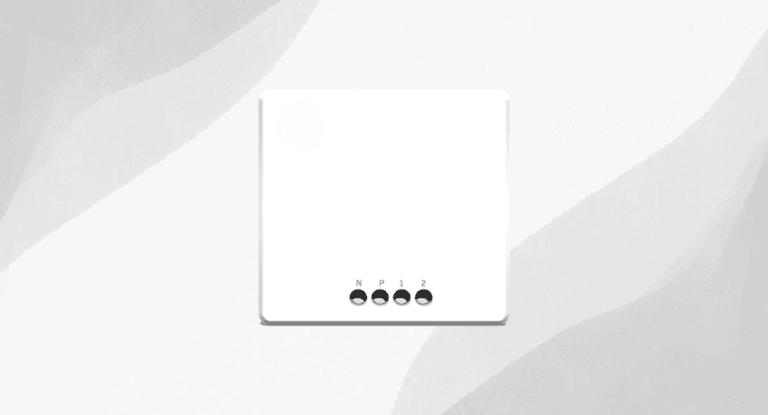

10Amps 2 Switch
Power input: 240V AC, 50/60Hz.
Maximum Supportive Load–7.5KW (32A).
Incandescent lamp/Resistive Load Per Channel:800W
LED Load: 120W or 6 Nos(whichever is higher) on each channel.
Inductive Load: 400W
Typical standby power: <0.8W
Surge Protection:2.5KV(Tested Upto 4KV)
Dimensions- Height:40mm Width:25mm Length:56mm
10Amps 3 Switches
Power input: 240V AC, 50/60Hz.
Maximum Supportive Load–7.5KW (32A).
Incandescent lamp/Resistive Load Per Channel:800W
LED Load: 120W or 6 Nos(whichever is higher) on each channel.
Inductive Load: 400W
Typical standby power: <0.8W
Surge Protection: 2.5KV(Tested Upto 4KV)
Dimensions- Height:40mm Width:25mm Length:77mm

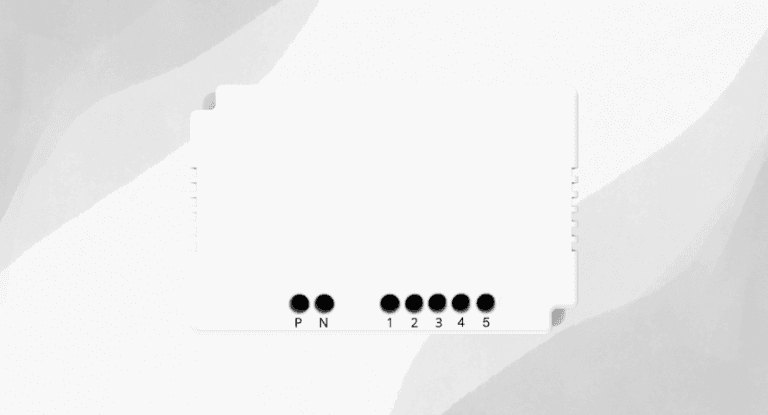

10Amps 5 Switches
Power input: 240V AC, 50/60Hz.
Maximum Supportive Load–7.5KW (32A).
Incandescent lamp/Resistive Load Per Channel:800W
LED Load: 120W or 6 Nos(whichever is higher) on each channel.
Inductive Load: 400W
Typical standby power: <0.8W
Surge Protection: 2.5KV(Tested Upto 4KV)
Dimensions- Height:40mm Width:25mm Length:77mm
10Amps Devices(Light + Fan)

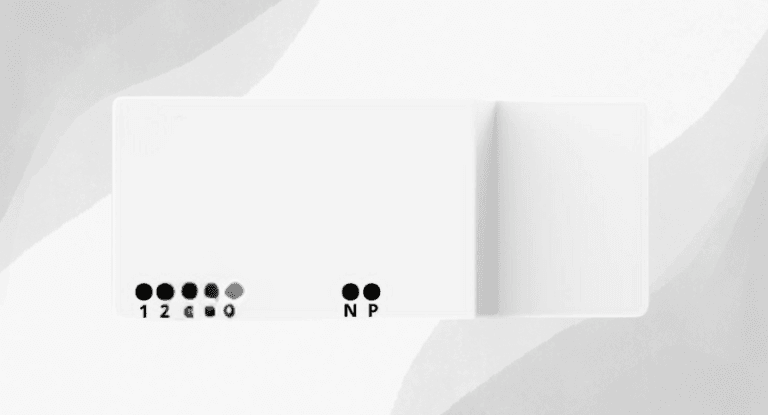

10Amps 2 Switch 1 Fan
Power input : 240V AC, 50/60Hz.
Dimmer Levels : 0 to 4 Incandescent lamp/Resistive Load Per Channel : 800W
LED Load : 120W or 4 Nos(whichever is higher)
Inductive Load : 400W
Typical standby power : <0.8W.
No of Channels:3(2+1)
Capacitive Dimming Channels : 1
Surge Protection : 2.5KV(Tested Up to 4KV)
Dimensions- Height:54mm Width:24mm Length:132mm

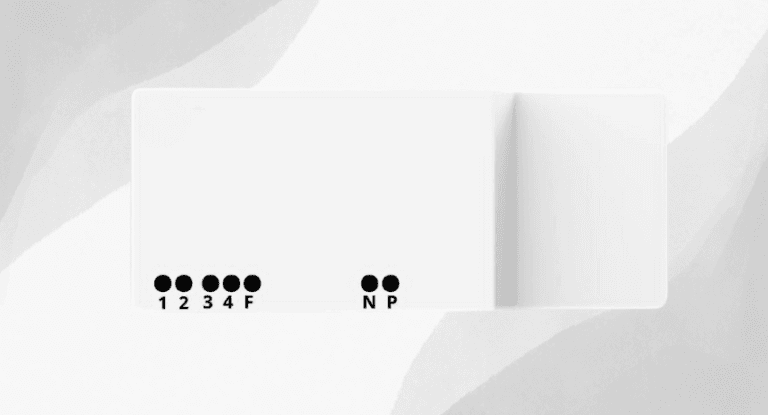

10Amps 4 Switch 1 Fan
Power input : 240V AC, 50/60Hz.
Dimmer Levels : 0 to 4 Incandescent lamp/Resistive Load Per Channel : 800W
LED Load : 120W or 4 Nos(whichever is higher)
Inductive Load : 400W
Typical standby power : <0.8W.
No of Channels:5(4+1)
Capacitive Dimming Channels : 1
Surge Protection : 2.5KV(Tested Up to 4KV)
Dimensions- Height:54mm Width:24mm Length:132mm
